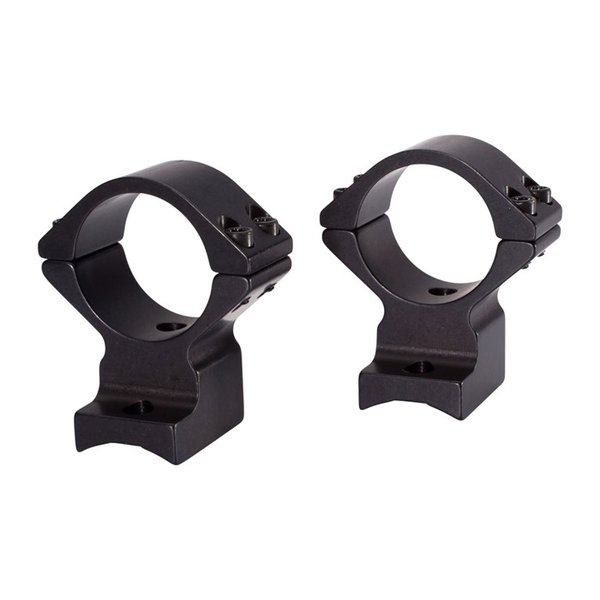

One-piece construction blends the ring and base into a single unit. Eliminating the ring/base joint not only keeps weight to a minimum, it provides a stronger mount. Each ring cap is 5⁄8" wide, with four, TORX screws, to keep large scopes from slipping or shifting. Designed by Mel Forbes of New Ultralight Arms.
SPECS: 7000 series aluminum, black, anodized, matte finish. Accepts 1" dia. scopes, unless otherwise listed in fits column for 30mm dia. scopes. Height from bottom of ring to top of receiver: Low - .400" (10.1mm), Med - .500" (12.7mm). High - .640" (16.3mm), X‑High - .740" (18.8mm). Approx. weight 2.1 oz. (59 g). Some heights vary, see chart below. Rem. 700 also fits 721/722/725 and 40X models. Rem. Model Seven fits receivers with four screw holes. Savage AccuTrigger fits round top centerfire receivers with AccuTrigger. Win. 70 fits .860" rear hole spacing only.
Quando ogni grammo conta; la forza dell'acciaio senza il peso
Il LIGHT WEIGHT SCOPE MOUNT per Remington 700 LA è progettato per offrire una costruzione robusta e leggera. Questo supporto per ottiche da 30 mm è realizzato in un'unica pezzo, unendo l'anello e la base in un'unica unità. Eliminando la giuntura anello/base, non solo si mantiene il peso al minimo, ma si garantisce anche un supporto più resistente.
Caratteristiche principali:
- Ogni cappuccio dell'anello è largo 5/8" e dotato di quattro viti TORX per evitare che le ottiche di grandi dimensioni scivolino o si spostino.
- Progettato da Mel Forbes di New Ultralight Arms.
- Materiale: alluminio serie 7000, nero, anodizzato, finitura opaca.
- Accetta ottiche con diametro di 1", a meno che non sia diversamente indicato nella colonna di adattamento per ottiche da 30 mm.
- Altezza dal fondo dell'anello alla parte superiore del ricevitore:
- Basso - .400" (10.1mm)
- Medio - .500" (12.7mm)
- Alto - .640" (16.3mm)
- X-Alto - .740" (18.8mm)
- Peso approssimativo: 2.1 oz. (59 g).
- Alcune altezze possono variare, vedere il grafico sottostante.
- Compatibilità: Rem. 700 si adatta anche ai modelli 721/722/725 e 40X. Il modello Rem. Seven si adatta ai ricevitori con quattro fori per le viti. Savage AccuTrigger si adatta ai ricevitori a fuoco centrale con parte superiore rotonda. Win. 70 si adatta solo a fori posteriori con spaziatura di .860".
