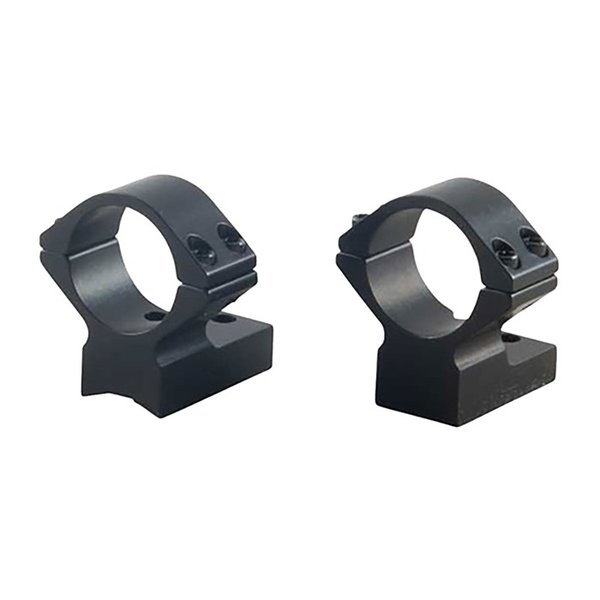

One-piece construction blends the ring and base into a single unit. Eliminating the ring/base joint not only keeps weight to a minimum, it provides a stronger mount. Each ring cap is 5⁄8" wide, with four, TORX screws, to keep large scopes from slipping or shifting. Designed by Mel Forbes of New Ultralight Arms.
SPECS: 7000 series aluminum, black, anodized, matte finish. Accepts 1" dia. scopes, unless otherwise listed in fits column for 30mm dia. scopes. Height from bottom of ring to top of receiver: Low - .400" (10.1mm), Med - .500" (12.7mm). High - .640" (16.3mm), X‑High - .740" (18.8mm). Approx. weight 2.1 oz. (59 g). Some heights vary, see chart below. Rem. 700 also fits 721/722/725 and 40X models. Rem. Model Seven fits receivers with four screw holes. Savage AccuTrigger fits round top centerfire receivers with AccuTrigger. Win. 70 fits .860" rear hole spacing only.
Quando ogni grammo conta; la forza dell'acciaio senza il peso
Il LIGHT WEIGHT SCOPE MOUNT della TALLEY è progettato per offrire una soluzione robusta e leggera per il montaggio di ottiche. La costruzione monopezzo fonde anello e base in un'unica unità, eliminando la giunzione anello/base, riducendo così il peso al minimo e garantendo un montaggio più resistente.
Caratteristiche Principali:
- Ogni cappuccio dell'anello è largo 5⁄8" e dotato di quattro viti TORX per evitare che le ottiche di grandi dimensioni scivolino o si spostino.
- Progettato da Mel Forbes di New Ultralight Arms.
- Realizzato in alluminio della serie 7000, finitura nera anodizzata opaca.
Specifiche:
- Accetta ottiche con diametro di 1", salvo diversa indicazione nella colonna di adattamento per ottiche da 30 mm.
- Altezza dal fondo dell'anello alla parte superiore del ricevitore:
- Basso - .400" (10.1mm)
- Medio - .500" (12.7mm)
- Alto - .640" (16.3mm)
- X-Alto - .740" (18.8mm)
- Peso approssimativo: 2.1 oz. (59 g).
- Alcune altezze possono variare; vedere la tabella sottostante.
- Compatibile con Rem. 700, 721/722/725 e modelli 40X.
- Il modello Rem. Seven si adatta a ricevitori con quattro fori per le viti.
- Il Savage AccuTrigger si adatta a ricevitori centerfire con parte superiore rotonda.
- Il Win. 70 si adatta solo a fori posteriori con distanza di .860".
