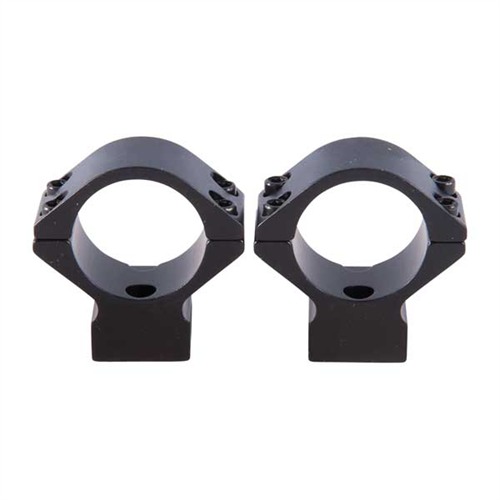

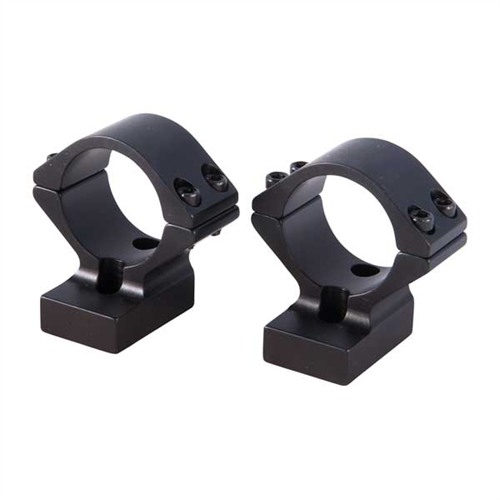

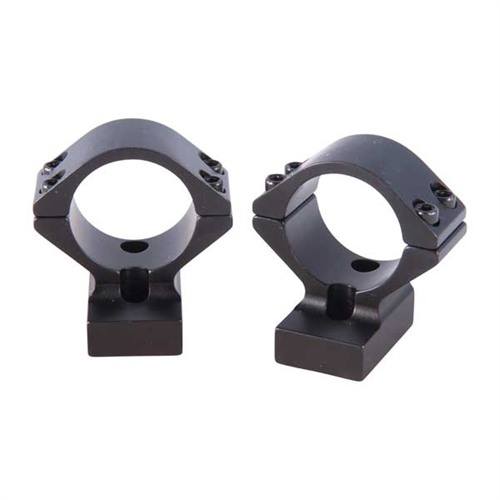

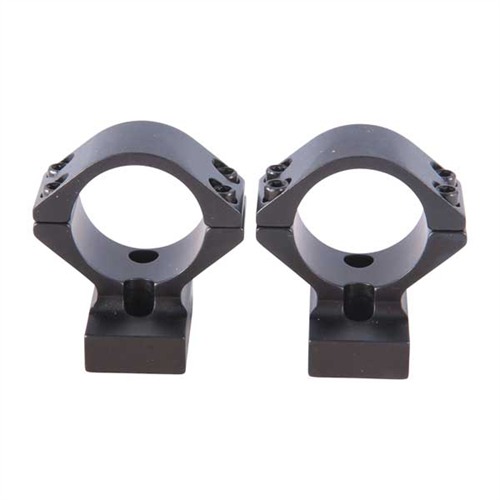

One-piece construction blends the ring and base into a single unit. Eliminating the ring/base joint not only keeps weight to a minimum, it provides a stronger mount. Each ring cap is 5⁄8" wide, with four, TORX screws, to keep large scopes from slipping or shifting. Designed by Mel Forbes of New Ultralight Arms.
SPECS: 7000 series aluminum, black, anodized, matte finish. Accepts 1" dia. scopes, unless otherwise listed in fits column for 30mm dia. scopes. Height from bottom of ring to top of receiver: Low - .400" (10.1mm), Med - .500" (12.7mm). High - .640" (16.3mm), X‑High - .740" (18.8mm). Approx. weight 2.1 oz. (59 g). Some heights vary, see chart below. Rem. 700 also fits 721/722/725 and 40X models. Rem. Model Seven fits receivers with four screw holes. Savage AccuTrigger fits round top centerfire receivers with AccuTrigger. Win. 70 fits .860" rear hole spacing only.
Quando ogni grammo conta; la forza dell'acciaio senza il peso
Il LIGHT WEIGHT SCOPE MOUNT di TALLEY è progettato per offrire una costruzione monopezzo che unisce l'anello e la base in un'unica unità. Eliminando il giunto anello/base, non solo si mantiene il peso al minimo, ma si fornisce anche un montaggio più robusto.
Caratteristiche del prodotto:
- Ogni cappuccio dell'anello è largo 5⁄8", con quattro viti TORX, per evitare che le ottiche grandi scivolino o si spostino.
- Progettato da Mel Forbes di New Ultralight Arms.
- Realizzato in alluminio della serie 7000, finitura nera anodizzata opaca.
- Compatibile con ottiche di diametro 1", a meno che non sia indicato diversamente nella colonna dei fit per ottiche di diametro 30mm.
- Altezza dal fondo dell'anello alla parte superiore del ricevitore:
- Basso - .400" (10.1mm)
- Medio - .500" (12.7mm)
- Alto - .640" (16.3mm)
- X-Alto - .740" (18.8mm)
- Peso approssimativo 2.1 oz. (59 g). Alcune altezze possono variare, vedere la tabella sottostante.
- Compatibile anche con i modelli Rem. 721/722/725 e 40X. Il modello Rem. Seven si adatta a ricevitori con quattro fori per le viti.
- Il Savage AccuTrigger si adatta a ricevitori a fuoco centrale con parte superiore rotonda dotati di AccuTrigger.
- Il Win. 70 si adatta solo a fori posteriori con spaziatura di .860".
