PCM (Panel, Cable Management) it is an MLOK compatible cable management panel/cover that protects and routes the cable underneath. TNVC and FCD had determined that internal/protected routing of cable is the most secure means of keeping it immobile, as it doesn't rely on friction, and can't be pulled out without removing the panel itself. PCM makes it possible for the cable to go straight through, or round a 90 degree angle, or even a 180 degree turn. PCM's cable routing can accommodate cables up to 0.140" in diameter. For references, Surefire's cables are 0.115" average, while the thickest Unity Tactical cables are 0.140 average. Billet machined from solid 6061 aluminum and Type III hard coat anodized, PCM has the AA (all angles), dimpled texture we've been using on FCD's bolt catches, magazine release buttons, and forward assist since 2016. PCM is shipped with MLOK mounting hardware, and can be staggered next to each other. One panel per package. Available in Type III anodized black, FDE, or ODG. Length: PCM, 1.57", fills one MLOK slot. Width: 0.6" Height: 0.22" (installed) Weight: PCM, 0.32oz, with MLOK nut and bolt. PCM-L, 3.14″, fills two MLOK slots. Width: 0.6″ Height: 0.22″ (installed) Proudly designed and made in the USA. PCM is a collaboration between FCD and TNVC (Tactical Night Vision Company), TNVC's PCM can be found here: https://tnvc.com/shop/tnvc-fcd-pcm-mlok/ NOTE: PCM ships with one panel per package.
Gestisci i tuoi cavi in modo sicuro e ordinato con il PCM di Forward Controls Design!

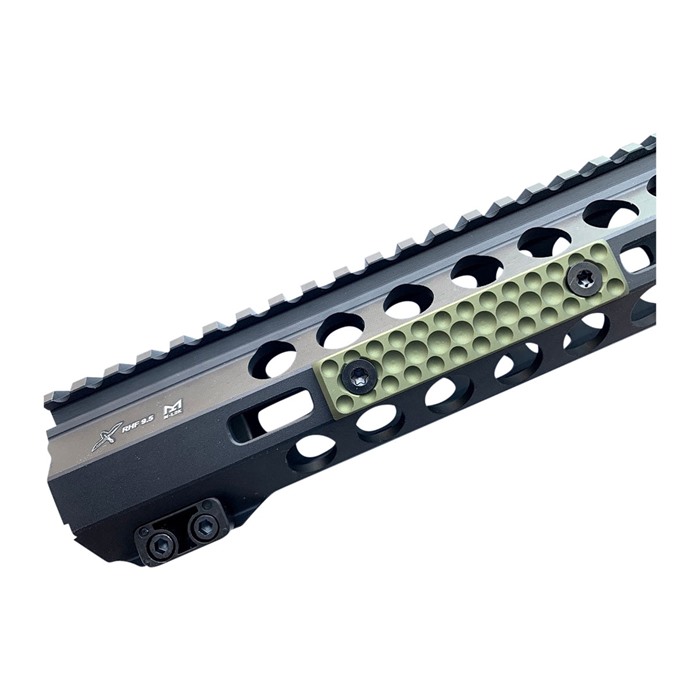

Il PCM (Panel, Cable Management) è un pannello di gestione dei cavi compatibile con MLOK che protegge e instrada i cavi sottostanti. TNVC e FCD hanno determinato che l'instradamento interno/protetto dei cavi è il metodo più sicuro per mantenerli immobile, poiché non si basa sull'attrito e non può essere estratto senza rimuovere il pannello stesso.

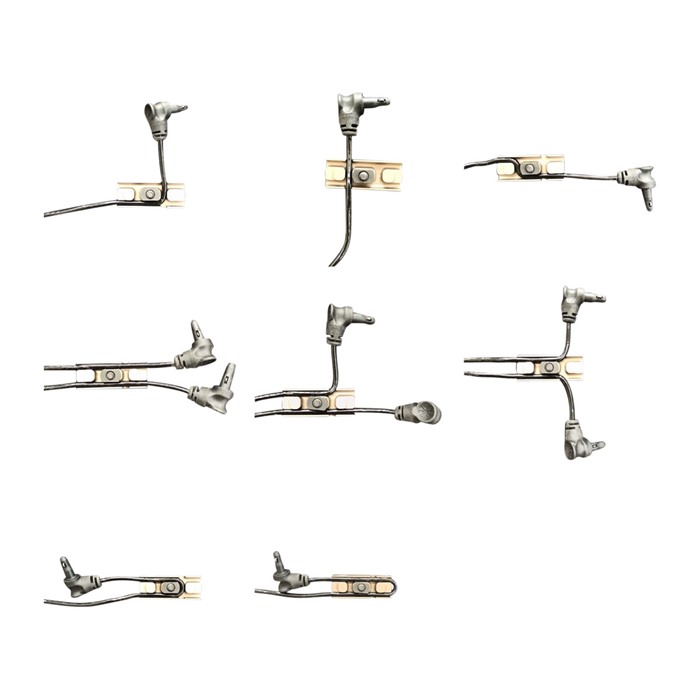

Il PCM consente al cavo di passare direttamente attraverso, o di fare un angolo di 90 gradi, o addirittura un giro di 180 gradi. L'instradamento dei cavi del PCM può ospitare cavi fino a 0.140" di diametro. Per riferimento, i cavi Surefire hanno una media di 0.115", mentre i cavi Unity Tactical più spessi hanno una media di 0.140".

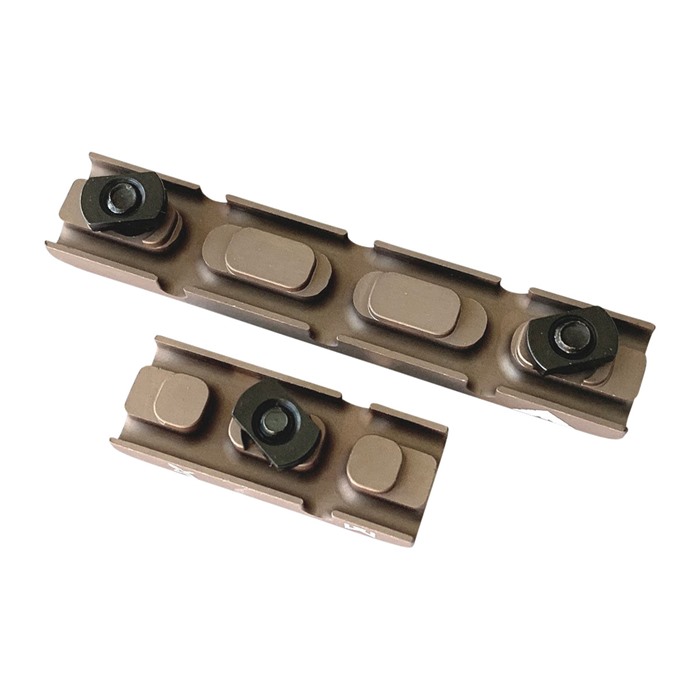

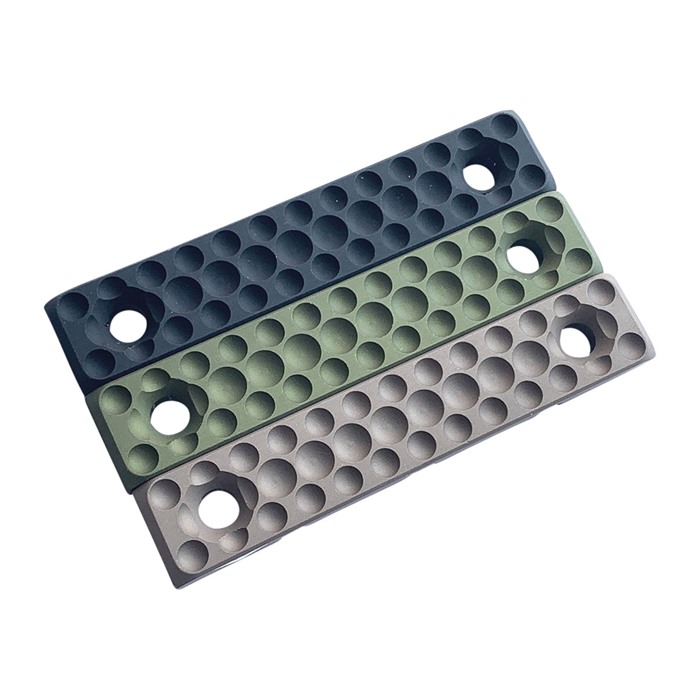

Realizzato in alluminio 6061 lavorato a macchina e anodizzato con rivestimento duro di Tipo III, il PCM presenta una texture AA (tutti gli angoli) con punteggiature che abbiamo utilizzato sui pulsanti di rilascio del caricatore, sulle catture di bulloni e sull'assistenza in avanti di FCD dal 2016. Il PCM è spedito con hardware di montaggio MLOK e può essere disposto in modo sfalsato l'uno accanto all'altro. Un pannello per pacchetto. Disponibile in anodizzato nero di Tipo III, FDE o ODG.
Specifiche tecniche:
- Dimensioni del PCM: Lunghezza: 1.57" (riempie uno slot MLOK)
- Larghezza: 0.6"
- Altezza: 0.22" (installato)
- Peso: 0.32oz, con dado e bullone MLOK
- PCM-L: Lunghezza: 3.14" (riempie due slot MLOK)
- Larghezza: 0.6"
- Altezza: 0.22" (installato)
Progettato e realizzato con orgoglio negli Stati Uniti. Il PCM è una collaborazione tra FCD e TNVC (Tactical Night Vision Company). Puoi trovare il PCM di TNVC qui: TNVC PCM.
Nota: Il PCM viene spedito con un pannello per pacchetto.
