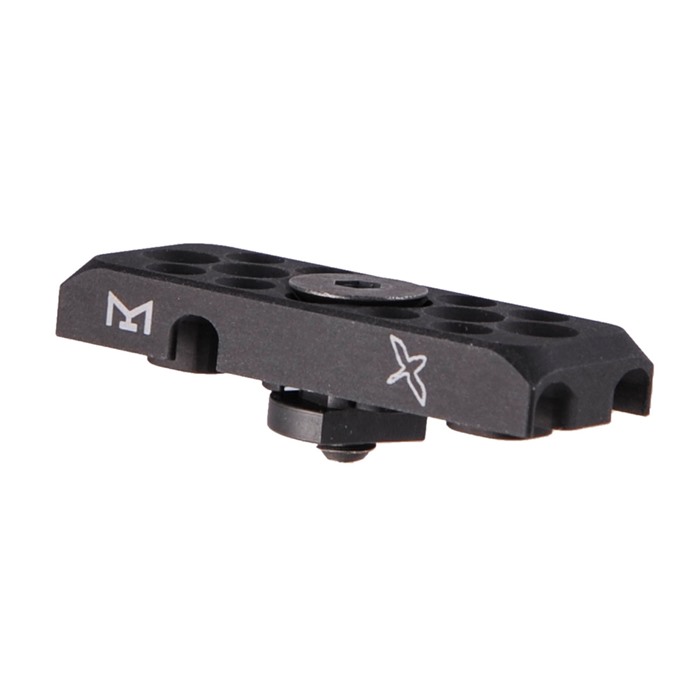

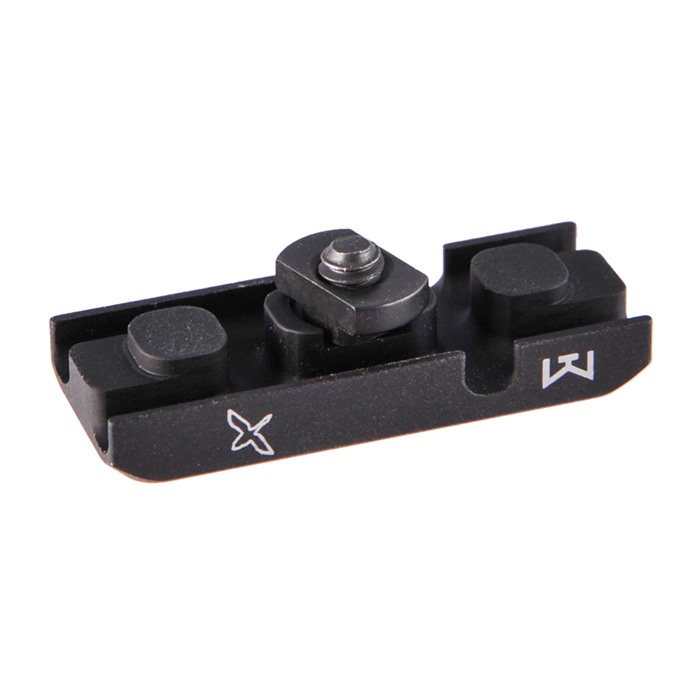

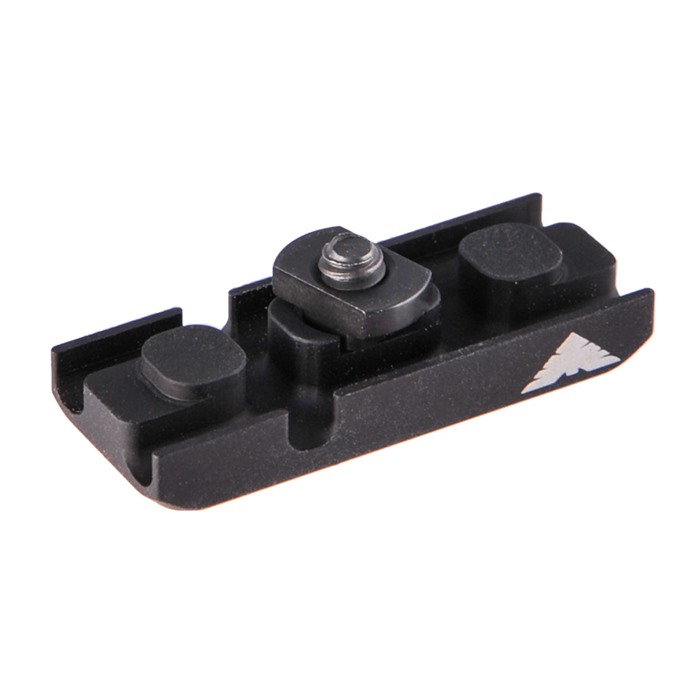

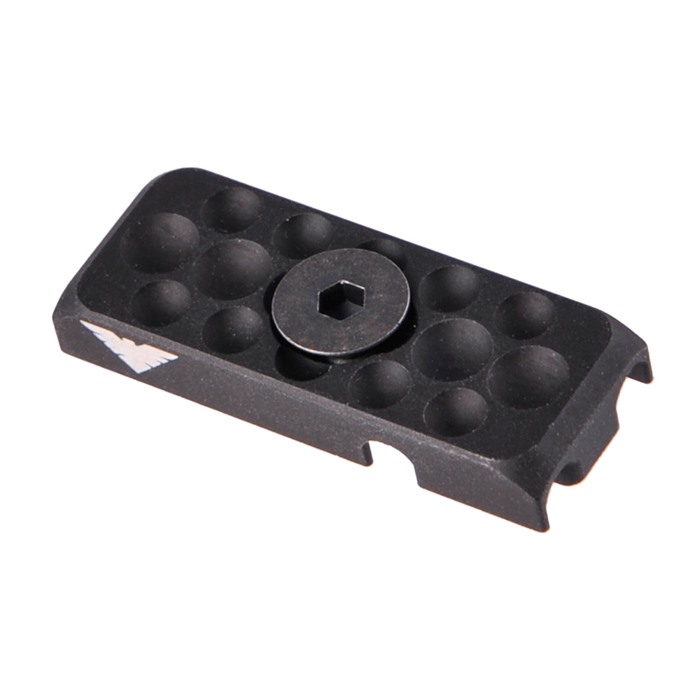

PCM (Panel, Cable Management) it is an MLOK compatible cable management panel/cover that protects and routes the cable underneath. TNVC and FCD had determined that internal/protected routing of cable is the most secure means of keeping it immobile, as it doesn't rely on friction, and can't be pulled out without removing the panel itself. PCM makes it possible for the cable to go straight through, or round a 90 degree angle, or even a 180 degree turn. PCM's cable routing can accommodate cables up to 0.140" in diameter. For references, Surefire's cables are 0.115" average, while the thickest Unity Tactical cables are 0.140 average. Billet machined from solid 6061 aluminum and Type III hard coat anodized, PCM has the AA (all angles), dimpled texture we've been using on FCD's bolt catches, magazine release buttons, and forward assist since 2016. PCM is shipped with MLOK mounting hardware, and can be staggered next to each other. One panel per package. Available in Type III anodized black, FDE, or ODG. Length: PCM, 1.57", fills one MLOK slot. Width: 0.6" Height: 0.22" (installed) Weight: PCM, 0.32oz, with MLOK nut and bolt. PCM-L, 3.14″, fills two MLOK slots. Width: 0.6″ Height: 0.22″ (installed) Proudly designed and made in the USA. PCM is a collaboration between FCD and TNVC (Tactical Night Vision Company), TNVC's PCM can be found here: https://tnvc.com/shop/tnvc-fcd-pcm-mlok/ NOTE: PCM ships with one panel per package.
Gestisci i cavi in modo sicuro e ordinato con il M-LOK Cable Management Panel!
Il PCM (Panel, Cable Management) è un pannello/coperchio per la gestione dei cavi compatibile con MLOK, progettato per proteggere e instradare i cavi sottostanti. TNVC e FCD hanno stabilito che l'instradamento interno/protetto dei cavi è il modo più sicuro per mantenerli fissi, poiché non dipende dall'attrito e non può essere estratto senza rimuovere il pannello stesso.
Il PCM consente ai cavi di passare direttamente, di fare un angolo di 90 gradi o addirittura una curva di 180 gradi. La gestione dei cavi del PCM può ospitare cavi fino a 0.140" di diametro. Per riferimento, i cavi Surefire hanno una media di 0.115", mentre i cavi più spessi di Unity Tactical hanno una media di 0.140".
Realizzato in alluminio 6061 lavorato a macchina e anodizzato con rivestimento duro di Tipo III, il PCM presenta una texture AA (tutti gli angoli) con punteggiature, utilizzata sui pulsanti di rilascio dei caricatori, sugli assistenti di avanzamento e sui catch dei bulloni di FCD dal 2016. Il PCM è fornito con hardware di montaggio MLOK e può essere disposto in modo sfalsato l'uno accanto all'altro. Un pannello per pacco. Disponibile in anodizzato nero di Tipo III, FDE o ODG.
- Dimensioni:
- Lunghezza: PCM, 1.57", riempie uno slot MLOK.
- Larghezza: 0.6"
- Altezza: 0.22" (installato)
- Peso: PCM, 0.32oz, con dado e bullone MLOK.

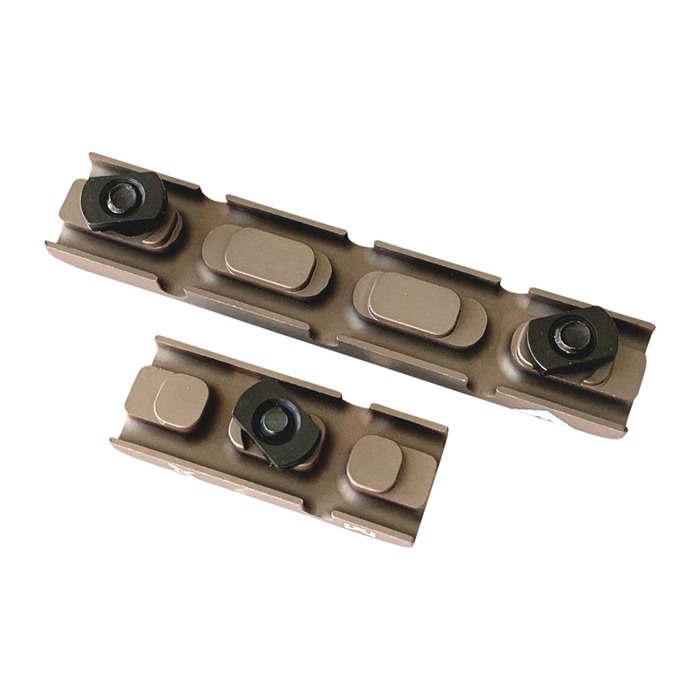

- PCM-L, 3.14″, riempie due slot MLOK.
- Larghezza: 0.6″
- Altezza: 0.22″ (installato)
Progettato e realizzato con orgoglio negli Stati Uniti.
Il PCM è una collaborazione tra FCD e TNVC (Tactical Night Vision Company). Puoi trovare il PCM di TNVC qui: https://tnvc.com/shop/tnvc-fcd-pcm-mlok/
Nota: Il PCM viene fornito con un pannello per pacco.
