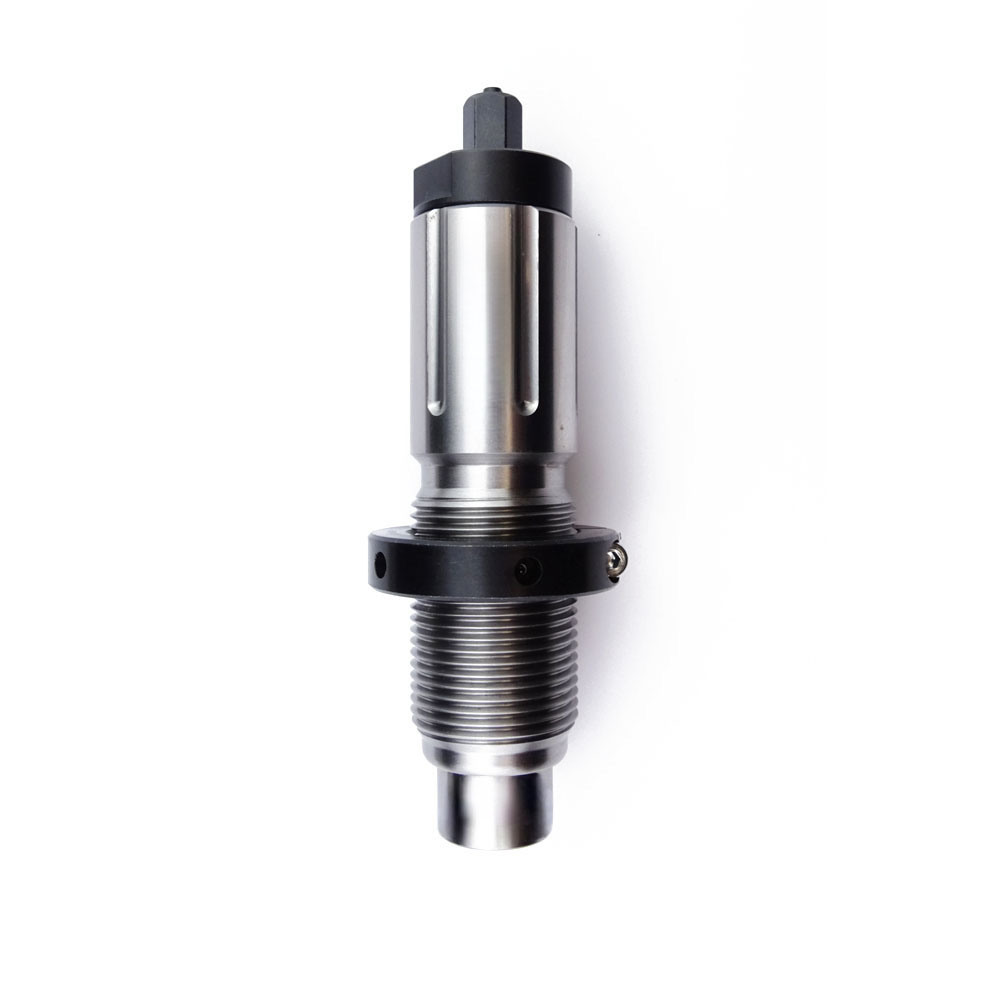

The Bench-Rest (BR)-Neck-Die guides the cartridge case over the full length before the cartridge case will be formed with an interchangeable precision ground bushing.
The guide sleeve has the internal contour of the cartridge chamber to cover the cartridge case.
The guide sleeve and the body of this reloading-die are perfectly matched to ensure exact axial alignment of the cartridge during the sizing process.
Of course, the BR-Neck-sizer has an optional expander and the exchangeable primer ejector pin.
This die is the perfect choice for those, who want to leave nothing to chance when reloading.
Specs:
- Thread: 1 1/4''
- Neck Size Bushing (diameter): 9.1mm
- Expander (diameter): 8.55mm
All relevant components have an article number for easy reordering if necessary.
You will find further instructions and assistance in selecting accessories and spare parts in the manual.>The manual can be found here<
Scopri la precisione dei dies TRIEBEL per la ricarica delle cartucce!
Il Bench-Rest (BR)-Neck-Die guida il bossolo della cartuccia lungo tutta la sua lunghezza prima che venga formato con un bushing intercambiabile e rettificato con precisione. Il guide sleeve ha il contorno interno della camera di cartuccia per coprire il bossolo.
Il guide sleeve e il corpo di questo reloading-die sono perfettamente abbinati per garantire un'esatta allineamento assiale della cartuccia durante il processo di dimensionamento. Naturalmente, il BR-Neck-sizer ha un espansore opzionale e un perno espulsore di primer intercambiabile.
Questo die è la scelta perfetta per chi non vuole lasciare nulla al caso durante la ricarica.
Specifiche:
- Filettatura: 1 1/4''
- Neck Size Bushing (diametro): 9.1mm
- Espansore (diametro): 8.55mm
Tutti i componenti rilevanti hanno un numero articolo per un facile riordino, se necessario. Troverai ulteriori istruzioni e assistenza nella selezione di accessori e ricambi nel manuale.
Il manuale può essere trovato qui.
