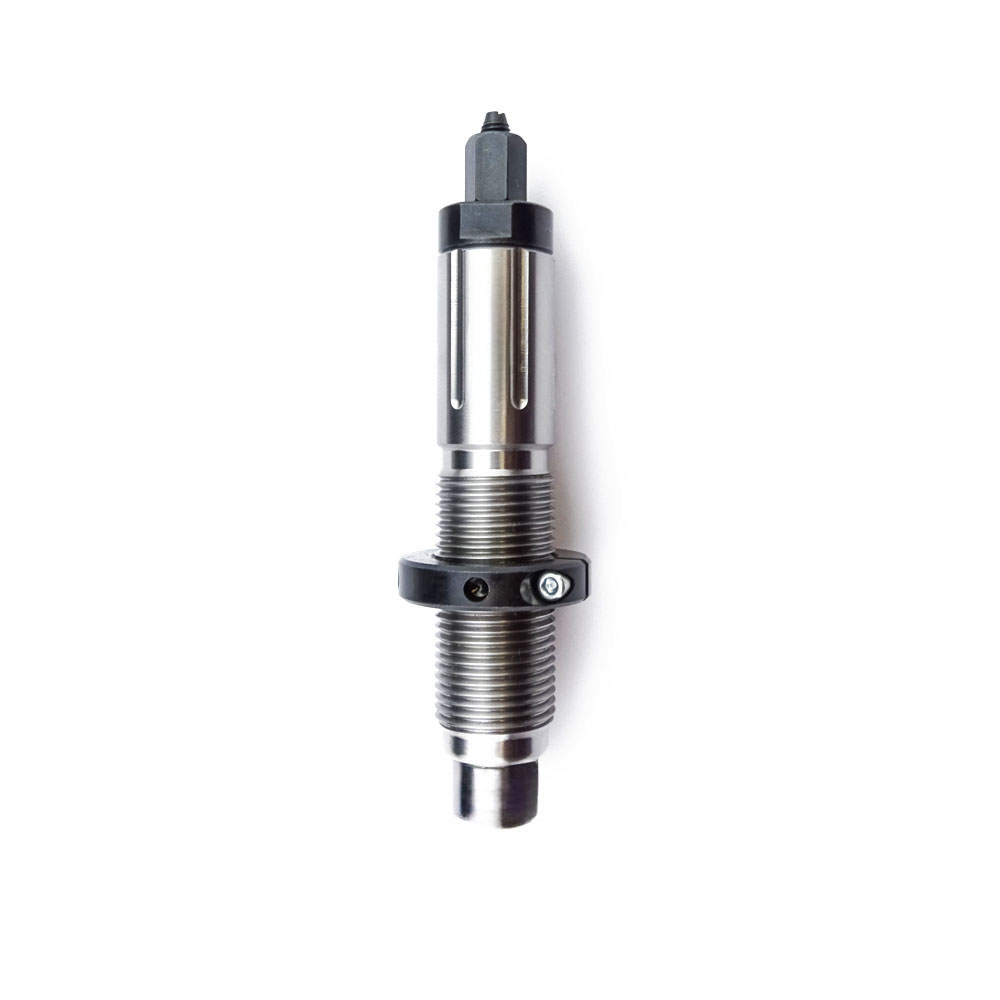

The Bench-Rest (BR)-Neck-Die guides the cartridge case over the full length before the cartridge case will be formed with an interchangeable precision ground bushing.
The guide sleeve has the internal contour of the cartridge chamber to cover the cartridge case.
The guide sleeve and the body of this reloading-die are perfectly matched to ensure exact axial alignment of the cartridge during the sizing process.
Of course, the BR-Neck-sizer has an optional expander and the exchangeable primer ejector pin.
This die is the perfect choice for those, who want to leave nothing to chance when reloading.
Specs:
- Thread: 1 1/4''
- Neck Bushing: 10.80mm
- Expander (diameter): 10.31mm
All relevant components have an article number for easy reordering if necessary.
You will find further instructions and assistance in selecting accessories and spare parts in the manual.>The manual can be found here<
Precisione e affidabilità per il ricaricatore esperto
Il TRIEBEL Bench-Rest Neck Die è progettato per offrire la massima precisione durante il processo di ricarica delle cartucce. Questo die guida il bossolo della cartuccia lungo tutta la sua lunghezza, prima che venga formato con un bushing a tolleranza di precisione intercambiabile.
Caratteristiche principali:
- Thread: 1 1/4''
- Neck Bushing: 10.80mm
- Expander (diametro): 10.31mm
Il guide sleeve ha il contorno interno della camera della cartuccia per adattarsi perfettamente al bossolo. Sia il guide sleeve che il corpo di questo die sono perfettamente abbinati per garantire un allineamento assiale esatto della cartuccia durante il processo di dimensionamento.
Il BR-Neck-sizer offre anche un expander opzionale e un perno espulsore di primer intercambiabile. Questo die è la scelta ideale per coloro che non vogliono lasciare nulla al caso durante la ricarica.
Tutti i componenti rilevanti hanno un numero articolo per un facile riordino, se necessario. Ulteriori istruzioni e assistenza nella selezione di accessori e ricambi possono essere trovate nel manuale.
Il manuale può essere trovato qui.
