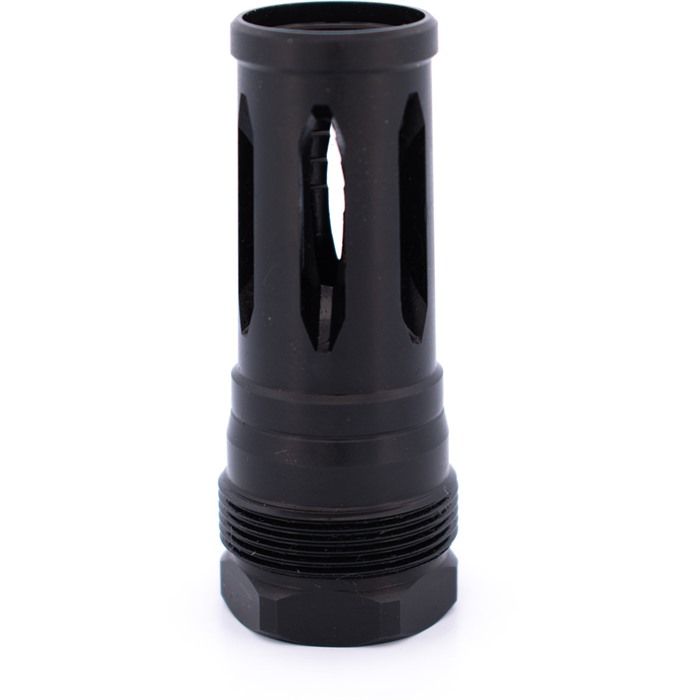

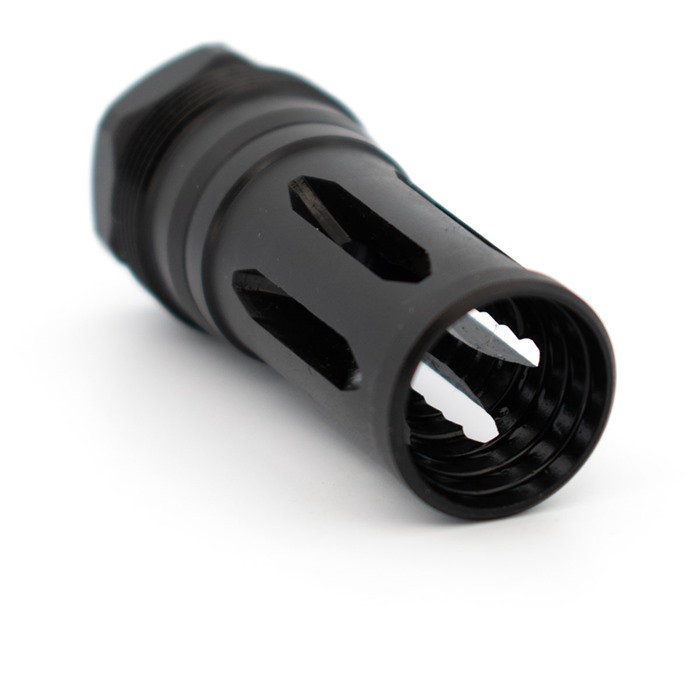

R2 FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Scopri il R2 FLASH HIDER: prestazioni elevate per il tuo sistema di silenziamento.
Il R2 FLASH HIDER è progettato per adattarsi ai montaggi di tipo Plan B. È fondamentale utilizzare un'asta di allineamento per garantire che l'intero sistema sia configurato correttamente. Assicurati che tutte le superfici siano pulite e che il dispositivo di bocca sia stato serrato e fissato con Rockset al tuo canna. L'uso su un silenziatore Q annulla la garanzia, fai attenzione.
Installazione e utilizzo
- Serra il dispositivo di bocca a circa 30 ft lbs.
- Assicurati che il dispositivo di bocca sia perfettamente quadrato contro la spalla.
- Quando posizioni il silenziatore sul dispositivo di bocca, verifica che le filettature e i coni siano puliti.
- Serra il soppressore a 10 ft lbs e assicurati che sia allineato.
Goditi l'esperienza. La finitura in nitruro porta a una tenuta più stretta; pertanto, è estremamente importante serrare e fissare correttamente il tuo dispositivo di bocca alla canna.
Caratteristiche:
- Materiale: 17-4 PH
- Compatibile con Atlas e Atlas XL
- Compatibile con Plan B
- Finitura in Black Nitride (durezza superficiale 67 HRC)
- Shim non inclusi; se desideri un timing specifico, saranno necessari degli shim.
- Nota: la tua canna potrebbe richiedere uno shim se il produttore non ha previsto un rilascio della filettatura.
