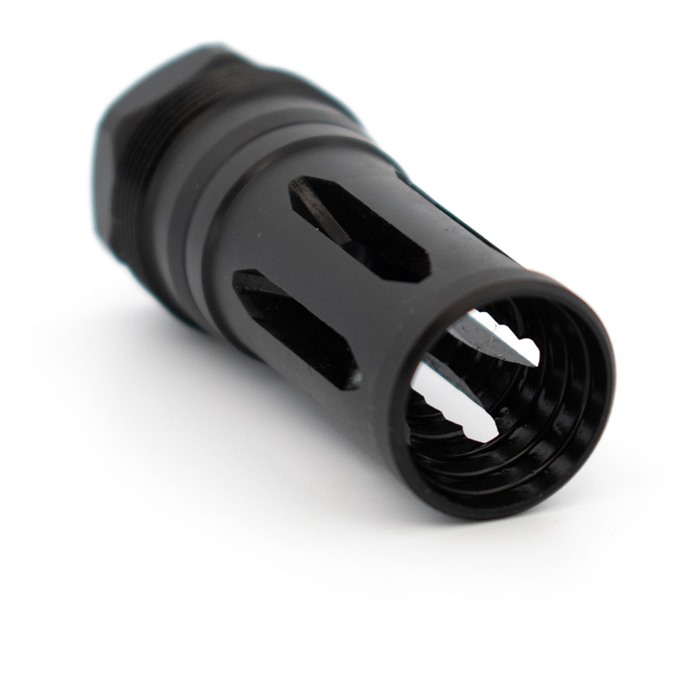

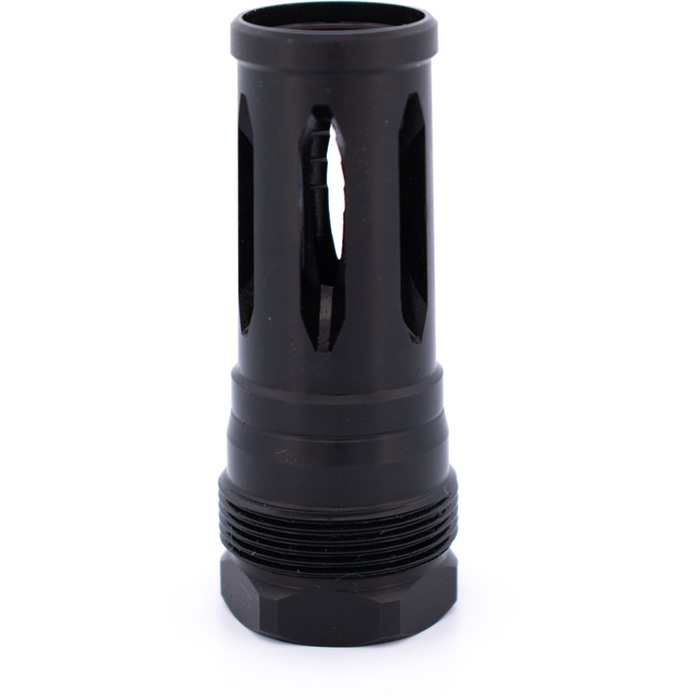

R2 FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Scopri il R2 FLASH HIDER: prestazioni e precisione superiori!
Il R2 FLASH HIDER è progettato per adattarsi ai montaggi di tipo Plan B. Assicurati sempre di utilizzare un'asta di allineamento per garantire che l'intero sistema sia configurato correttamente. È fondamentale pulire tutte le superfici e assicurarsi che il dispositivo di volata sia stato serrato e fissato con Rockset al canna.
Attenzione: l'uso su un Q can annulla la garanzia. Torna il dispositivo di volata a circa 30 ft lbs. Assicurati che il dispositivo di volata sia quadrato rispetto alla spalla. Quando posizioni il silenziatore sul dispositivo di volata, verifica che i filetti e i coni siano puliti. Torna il soppressore a 10 ft lbs. Assicurati di mantenere l'allineamento. Goditi il tuo nuovo acquisto.
La finitura in nitruro contribuisce a una tenuta più stretta; pertanto, è estremamente importante serrare e fissare correttamente il dispositivo di volata alla canna.
Caratteristiche:
- Materiale: 17-4 PH
- Compatibile con Atlas e Atlas XL
- Compatibile con Plan B
- Finitura in Black Nitride (durezza superficiale 67 HRC)
- Shim non inclusi; se desideri temporizzare specificamente questo, saranno necessari shim.
- Nota: la tua canna potrebbe richiedere uno shim se il produttore non ha previsto un rilascio filettato.
