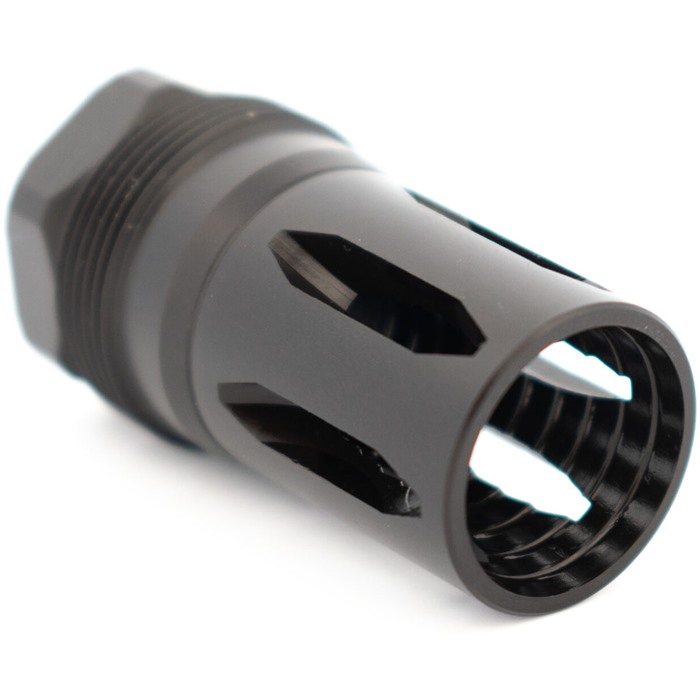

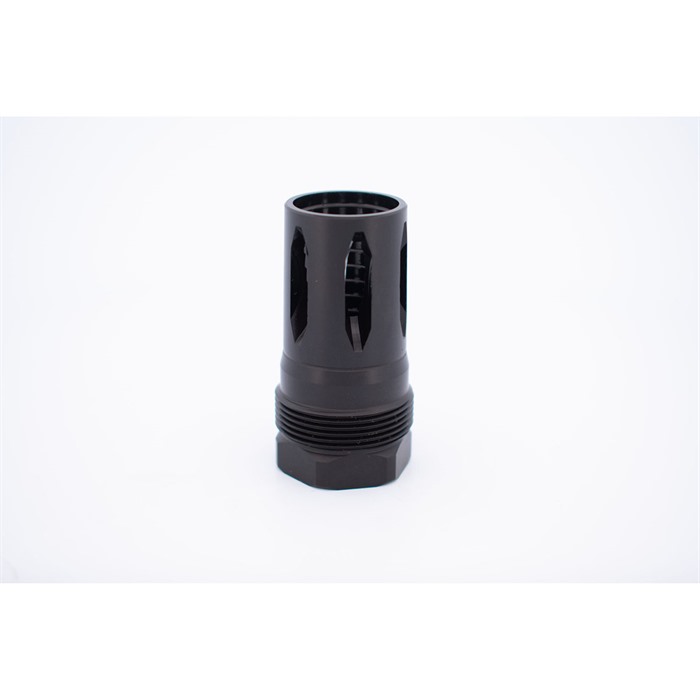

R2S FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Scopri il R2S FLASH HIDER per prestazioni superiori!
Il R2S FLASH HIDER è progettato per adattarsi ai supporti di tipo Plan B. Assicurati di utilizzare un'asta di allineamento per garantire che l'intero sistema sia impostato correttamente. È fondamentale pulire tutte le superfici e assicurarsi che il dispositivo di volata sia serrato e fissato con Rockset al canna.
Attenzione: l'uso su un silenziatore Q annulla la garanzia. È importante serrare il dispositivo di volata a circa 15-25 ft lbs e assicurarsi che sia quadrato rispetto alla spalla. Quando si posiziona il silenziatore sul dispositivo di volata, assicurati che i filetti e le conicità siano puliti. Serrare il soppressore a 10 ft lbs e garantire l'allineamento. Buon divertimento!
La finitura in nitruro porta a una tenuta più stretta; pertanto, è estremamente importante serrare e fissare correttamente il dispositivo di volata alla canna.
Caratteristiche:
- Materiale: 17-4 PH
- Compatibile con Atlas e Atlas XL
- Compatibile con Plan B
- Finitura in Nitruro Nero (67 HRC di durezza superficiale)
- Shim non inclusi; se desideri un timing specifico, saranno necessari shim.
- Nota: la tua canna potrebbe richiedere uno shim se il produttore non ha previsto un rilascio della filettatura.
