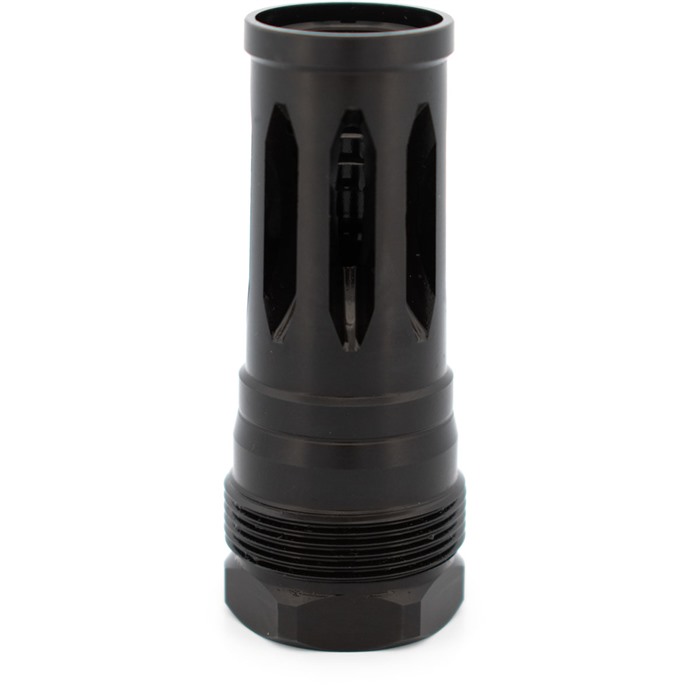

R2C FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy.The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims included
R2C FLASH HIDER: Prestazioni superiori per il tuo sistema di armi
Gli R2C FLASH HIDERS sono progettati per adattarsi ai montaggi di tipo Plan B. È fondamentale utilizzare un'asta di allineamento per garantire che l'intero sistema sia configurato correttamente. Assicurati che tutte le superfici siano pulite e che il dispositivo di volata sia stato serrato e fissato con Rockset al calcio.
Nota che l'uso su un Q can annulla la garanzia, quindi fai attenzione. Serrate il dispositivo di volata a circa 30 ft lbs. Assicurati che il dispositivo di volata sia perfettamente squadrato contro la spalla. Quando posizioni il silenziatore sul dispositivo di volata, controlla che i filetti e i coni siano puliti. Serrate il soppressore a 10 ft lbs. Assicurati di mantenere l'allineamento. Buon divertimento!
La finitura in nitruro porta a una tenuta più stretta; pertanto, è estremamente importante serrare e fissare correttamente il dispositivo di volata al calcio.
Caratteristiche:
- 17-4 PH
- Compatibile con Atlas e Atlas XL
- Compatibile con Plan B
- Finitura in nitruro nero (67 HRC di durezza superficiale)
- Shim inclusi
