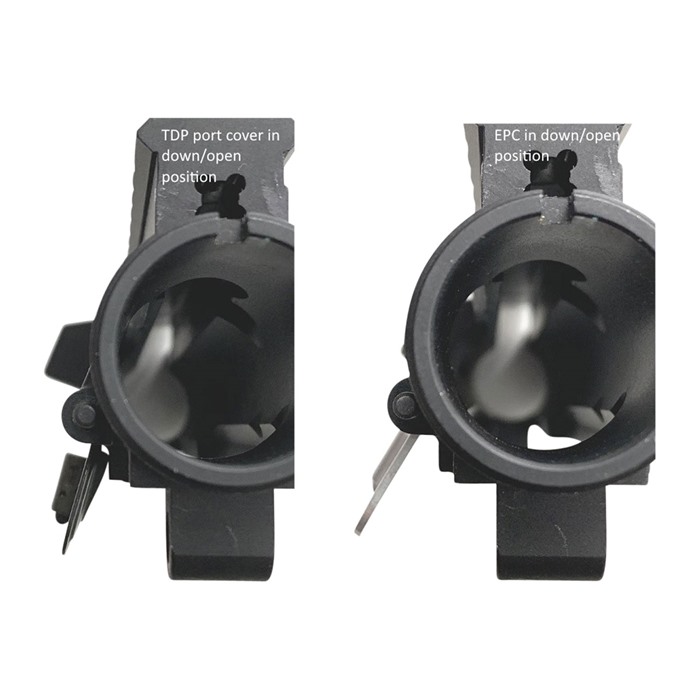

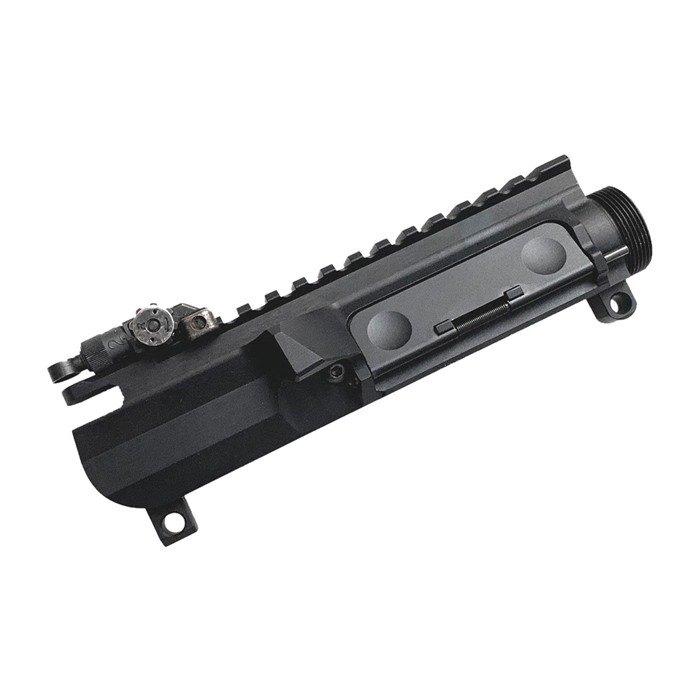

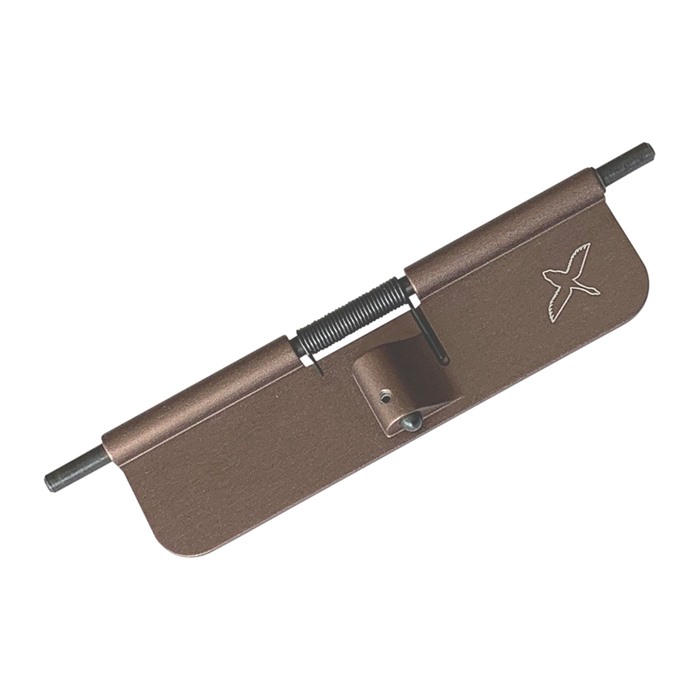

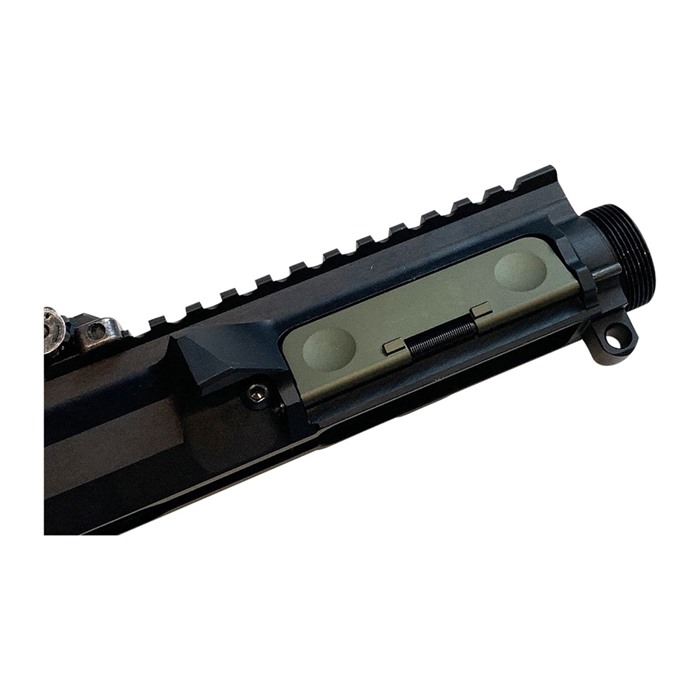

EPC (Ejection Port Cover) is based on TDP dimensions, with thoughtful Forward Control touches. Billet machined from 7075 aluminum, and hard coat Type III anodized, it incorporates features they think many will find useful. EPC has two "tabs" flanking the cutout for the port cover spring. These tabs allow the EPC to rest on the upper at a greater angle when it's in the down/open position, which provides more space between the port cover and lower receiver. Their job is to better allow the user's finger to get underneath the port cover when he wishes to swing it up/close. Another feature is a shallow circular depression on the side of the EPC to provide texture tactile feedback to the user's finger when he's closing the EPC. A flat surface provides nothing to the user to differentiate one surface from another, it also provides no traction. A shallow circular depression on the left side of the EPC does both. Forward Controls Design incorporate flat surfaces with care as they have their uses . In this case, EPC's exterior surface is treated as a control surface, where a flat surface rarely makes sense. EPC is compatible with TDP spec upper receivers. Weight: 0.30oz. Material: 7075 Construction and coating: billet, type III anodized. Proudly designed and made in the USA. NOTE: Initial closing and opening of EPC may be stiff, this is normal, and will become easier with 2 or 3 closing/opening cycles. Proudly designed and made in the USA. NOTE: CSF does not ship with sling swivels. Please do not fully disassemble the CSF, you may not be able to reassemble it once it's taken apart.
Copertura del portello di espulsione con doppio dimple, progettata per prestazioni superiori.
La EPC (Ejection Port Cover) è basata sulle dimensioni TDP, con tocchi pensati da Forward Control. Realizzata in alluminio 7075 lavorato a macchina, e anodizzato di tipo III, incorpora caratteristiche che molti troveranno utili.
Caratteristiche principali:
- Due "linguette" ai lati dell'apertura per la molla della copertura, che consentono alla EPC di posizionarsi su un angolo maggiore quando è in posizione aperta, creando più spazio tra la copertura e il ricevitore inferiore.
- Una depressione circolare poco profonda sul lato della EPC per fornire un feedback tattile al dito dell'utente durante la chiusura della copertura.
- Superfici piane trattate con attenzione per garantire un uso pratico, con la superficie esterna della EPC considerata una superficie di controllo.
La EPC è compatibile con i ricevitori superiori specificati TDP e ha un peso di 0,30 oz. È realizzata in materiale 7075 con costruzione e rivestimento in billette, anodizzato di tipo III. Orgogliosamente progettata e realizzata negli Stati Uniti.
Nota: La chiusura e l'apertura iniziali della EPC possono risultare rigide; questo è normale e diventerà più facile dopo 2 o 3 cicli di chiusura/apertura.
Nota: La CSF non viene fornita con anelli per slitta. Si prega di non smontare completamente la CSF, poiché potrebbe non essere possibile rimontarla una volta smontata.
