J P ENTERPRISES
AR-15/M16 FLATTOP OPTIC MOUNT

812872022192 452000044

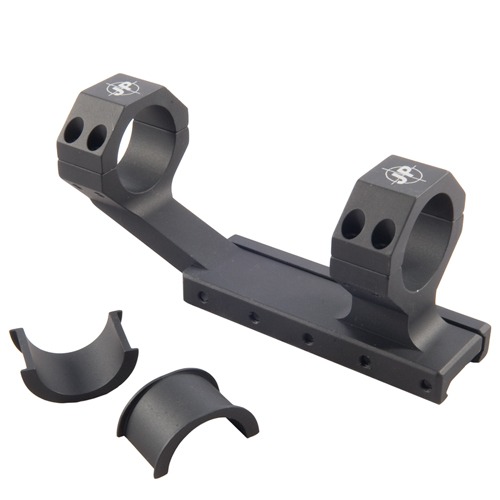

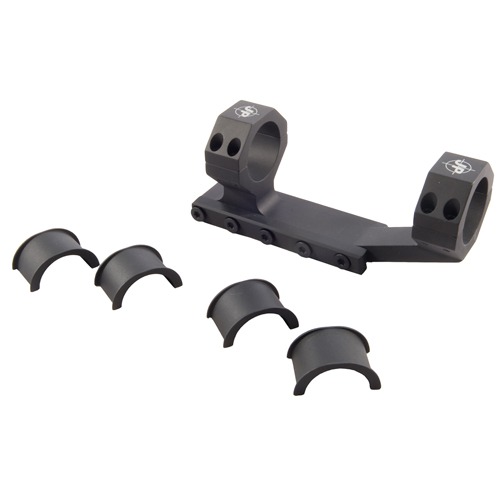

Integral Offset Rings For Rock-Solid Mounting
One-piece, aluminum mount with integral rings is precision machined to true MIL-STD 1913 Picatinny specs for a secure fit on flattop receiver rails. Ring height and forward offset are ideal for use with long eye relief scopes. Mounts available for 1"/30mm and 34mm scope tubes. 1"/30mm mount accepts scopes with both 30mm tubes and, using the included polymer adapter shims, 1" tubes. Torx® head screws (4 on 1"/30mm, 6 on 34mm and 35mm) secure each top ring strap to hold the optics tight under heavy recoil. Full-length base clamps to the receiver with five, equally spaced crossbolts for a rock-solid fit and zero movement.

SPECS: 6061 T6 aluminum, hardcoat anodized, matte black. Includes instructions and T15 and T20 Torx wrenches. 1"/30mm - Approximately 5½" (14cm) long, 1¾" (4.4cm) wide, 21⁄8" (5.4cm) high. 7.1 oz. (201 g) weight. Elevates a 30mm optic .965" (24.5mm), measured from top of receiver rail to bottom of scope. 34mm - 5¾" (14.6cm) long, 115⁄16" (4.9cm) wide, 2½" (6.3cm) overall height. 7 oz. (198g) weight. Height - .760" (1.9cm), measured from top of receiver rail to bottom of scope tube.

589.9 589.9 1 EUR
N. prodotto: 452000044
J P ENTERPRISES JP FLATTOP SCOPE MOUNT, 1"/30MM
Parti Fabbricante: JPFTSM301 812872022192 Supporto monopezzo in alluminio con anelli integrati, lavorato con precisione secondo le specifiche MIL-STD 1913 Picatinny per un fissaggio sicuro sui binari del ricevitore flattop. L'altezza dell'anello e l'offset anteriore sono ideali per l'uso con cannocchiali con lungo rilievo oculare. Disponibili supporti per tubi ottici da 1"/30mm e 34mm. Il supporto da 1"/30mm accetta cannocchiali sia con tubi da 30mm che, utilizzando le apposite guarnizioni adattatrici in polimero incluse, con tubi da 1". Viti a testa Torx® (4 su 1"/30mm, 6 su 34mm e 35mm) fissano ciascuna cinghia superiore dell'anello per mantenere l'ottica ferma sotto il forte rinculo. La base a tutta lunghezza si aggancia al ricevitore con cinque bulloni trasversali equidistanti per un fissaggio solido come la roccia e senza movimenti.
589.9 EUR 2 589,90 € *
Tempi di consegna circa 12-16 giorni.
2 pz. nel magazzino USA
Caratteristiche: Adatto per: AR-15 Altezza: 1.45'' Diametro del tubo dell'ottica: 1'', 30mm Finitura: Nero Tipo: Picatinny, Flat ap

Caratteristiche

Adatto per: AR-15 Altezza: 1.45'' Diametro del tubo dell'ottica: 1'',30mm Finitura: Nero Tipo: Flat ap,Picatinny Peso della spedizione: 0,249kg Altezza di spedizione: 56mm Larghezza di spedizione: 118mm Lunghezza di spedizione: 186mm

Dettagli dell'elemento

Made in Usa



Integral Offset Rings For Rock-Solid Mounting
One-piece, aluminum mount with integral rings is precision machined to true MIL-STD 1913 Picatinny specs for a secure fit on flattop receiver rails. Ring height and forward offset are ideal for use with long eye relief scopes. Mounts available for 1"/30mm and 34mm scope tubes. 1"/30mm mount accepts scopes with both 30mm tubes and, using the included polymer adapter shims, 1" tubes. Torx® head screws (4 on 1"/30mm, 6 on 34mm and 35mm) secure each top ring strap to hold the optics tight under heavy recoil. Full-length base clamps to the receiver with five, equally spaced crossbolts for a rock-solid fit and zero movement.

SPECS: 6061 T6 aluminum, hardcoat anodized, matte black. Includes instructions and T15 and T20 Torx wrenches. 1"/30mm - Approximately 5½" (14cm) long, 1¾" (4.4cm) wide, 21⁄8" (5.4cm) high. 7.1 oz. (201 g) weight. Elevates a 30mm optic .965" (24.5mm), measured from top of receiver rail to bottom of scope. 34mm - 5¾" (14.6cm) long, 115⁄16" (4.9cm) wide, 2½" (6.3cm) overall height. 7 oz. (198g) weight. Height - .760" (1.9cm), measured from top of receiver rail to bottom of scope tube.
